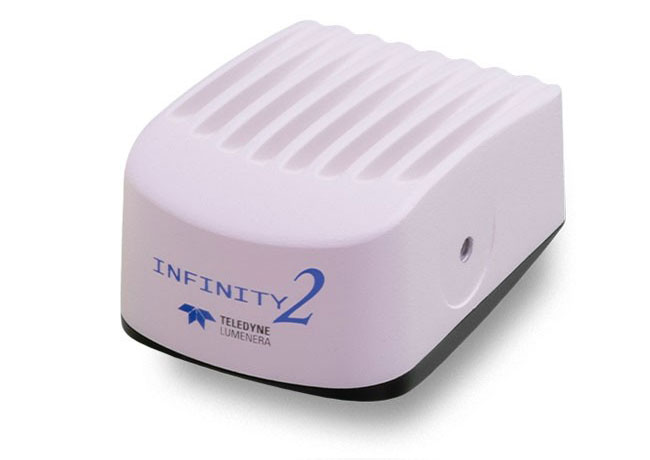

Industry’s Best Price-to-Performance Uncooled ICX205 Camera! 2-1R scientific camera offers a significant performance increase for quantitative and low-light applications over its predecessor. Improved thermal management techniques combined with a much higher dynamic range and 14-bit output have resulted in a versatile entry-level research camera for documentation and image analysis in Life Science, Clinical and Material Science applications. The INFINITY2-1R easily manages seconds of exposure time with a dark current rating of less than 1 e-/s.
Superior Sensitivity:
The INFINITY2-1R has a dynamic range of 64 dB allowing users to image unevenly lit samples without worry. The resulting images show detail in bright and dark areas not normally seen in lower dynamic range cameras. Advanced thermal management allows for long exposure times of several minutes without the need for a much higher priced cooled camera.
USB 2.0 Plug-and-Play Interface:
Sharing and installation of one or more cameras on a single computer is quick and simple through a high-speed USB 2.0 interface.
Product Highlights:
- Improved noise performance over first generation camera
- Incredibly low dark current noise in an uncooled camera
- High dynamic range of 64 dB
- Low noise progressive scan 1/2″ 1.4 megapixel Sony ICX205 CCD sensor
- Selectable 8 or 14-bit pixel data modes
| Sensor Specification | |
| Image Sensor | ½” Interline Sony ICX205 1.4 megapixel colour or monochrome progressive scan CCD |
| C-mount Adapter | 0.50x |
| Active Area | 7.6 x 6.2 mm |
| Pixel Size | 4.65 μm x 4.65 μm |
| Resolution | 1392 x 1040 pixels |
| Region of Interest Control | Any multiple of 8 x 8 pixels, 120 x 120 pixels |
| minimum | |
| Camera Specification | |
| Frame Rate | 30 fps at 1392 x 1040, 52 fps at 640 x 480 (ROI) |
| Bit Depth | 8 and 14-bit |
| Binning / Subsampling | 2 x 2, 4 x 4 |
| Exposure Control | Automatic and manual control |
| Exposure Range | 48 μs to 500 ms (video), 5.4 μs to 8 min (snapshot) |
| White Balance | Automatic and manual control |
| Gain | Manual and automatic control |
| Gain Range | 0.5 to 15x |
| Camera Characteristics | |
| Dynamic Range | 64.6 dB |
| Pixel Well Depth | 14,500 e- |
| Quantum Efficiency | 32 % (peak colour) 44 % (peak mono) |
| Read Noise | 8.5 e- rms |
| Dark Current Noise | < 1 e-/s at 22 ºC |
| Mechanical Specifications | |
| Data Interface | USB 2.0 high-speed interface |
| Lens mount | C-Mount |
| Dimensions | 3.85 x 2.25 x 1.56 inches |
| Mass | 340g |
| Operation Temperature | 0° C to +50° C |
| Camera Software | |
| Operating Systems | Windows XP, Vista, 7, 8 (32 & 64 bit), Mac OSX 10.7 |
