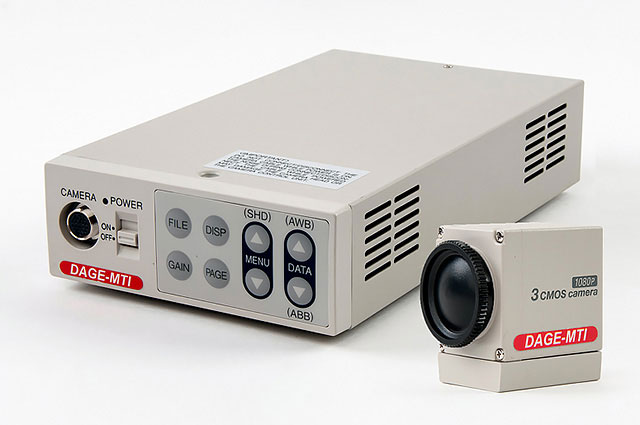

Dage-MTI HD-336U

Dage-MTI HD-336U


The HD-336U (Medically Certified option available) is the ultimate 3CMOS HD microscopy camera for brightfield and fluorescence imaging. The HD-336U offers full, high definition, 1080p streaming via USB 3.0 or DVI/HDMI outputs – or both simultaneously. Dual outputs allow interface directly to a computer or streaming to an HD display monitor with over 1000 TV lines of resolution at 60 fps!

Like the family of HD cameras offered by Dage-MTI, the HD-336U is preprogrammed for perfect color by critical adjustments of 6 hues – not just red, green and blue, but yellow, cyan and magenta as well. Utilizing the latest 3 CMOS chip technology, the HD-336U increases spatial resolution without sacrificing real time, 60fps for live streaming. This fast frame rate enables the operator to move samples or change magnifications without smear lag or jitter. Real-time, 60fps video streaming also allows effortless focus and specimen placement for more efficient slide reviews.

The HD-336U automatically adjusts to changes in light intensity. No more fumbling with the intensity controls of your microscope or camera. One button white balance and preprogrammed scene files makes using the HD-336U simple to use. Operate the camera by directly connecting to an HDMI monitor without the need for a PC. Or connect the USB 3.0 output directly to a computer for 60fps imaging.

Dage’s proprietary “MagicApp” acquisition software is included with the HD-336U. Easily select a destination folder for instantaneous image capture and review. Up to 116 characters are available to name/label stored images. Automatic sequential labeling allows quick capture of multiple images.

When the application demands the superior resolution and image quality only a 3CMOS HD camera can provide, the full-featured HD-336U is the solution.
