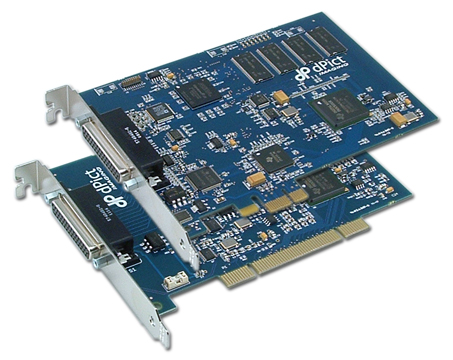

Aexeon is a low-cost, full-featured video acquisition board for analogue cameras. Available in either PCI or PCI Express formats, Aexeon incorporates a digital media processor and on-board frame buffer for reliable capture for the most demanding vision-related application. Aexeon’s video input circuitry digitizes between multiple component, S-Video, or composite video signals in either square pixel or CCIR-601 resolutions. With plenty of I/O triggers and extensive camera control, Aexeon is the perfect frame grabber for cost-effective analogue camera applications.
Aexeon Features
- PCI or PCI Express Formats
- Bus-mastering video acquisition
- Simultaneous real-time transfer of video to system or display memory
- TI DM642 Digital Media Processor
- 32 MB SDRAM Frame Buffer
- High-quality 10-bit input digitization
- Video scaling to arbitrarily sized windows
- Up to 3 RGB or YPbPr, 4 S-Video, and 9 composite multiplexed video inputs
- RGB, YPbPr, S-Video, and composite video output
- CCIR and square pixel capture resolution
- NTSC and PAL video formats
- 8 General purpose I/O triggers
- On-board microcontroller for robust timing and capture control
- RS-232 serial input and output
- 12-volt DC switched output for camera supply
- Windows® 8, 7, Vista, and XP drivers
- DirectShow and TWAIN support
- Free dPiction Capture Application
- Optional SDK with sample applications
