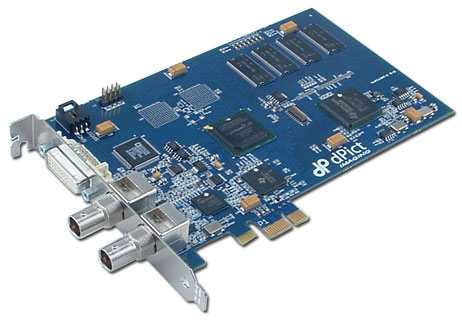

dPict Imaging Nexeon HD Xtra

dPict Imaging Nexeon HD XtraNexeon HD Xtra is a full-featured video frame grabber for high-definition video display and capture. It supports viewing and capture from high-definition video inputs from SDI, HDTV and VGA display sources. Nexeon HD Xtra has a flexible input interface complete with an HDMI compatible receiver and supports both analog and digital DVI/HDMI standards.

Nexeon HD Xtra Features

  • PCI Express Format
  • Bus-mastering video acquisition
  • HD-SDI input support
  • HDTV support up to 1080p
  • DVI and HDMI input support
  • RGB/YPrPb component input support
  • Simultaneous real-time transfer of video to system memory or display memory
  • TI DM642 Digital Media Processor
  • 64 MB SDRAM Frame Buffer
  • 3G-SDI acquisition rates up to 2.97 Gb/sec
  • HDTV or HDMI acquisition rates up to 150 MHz
  • Auto acquisition of SDI and HDMI inputs
  • Video scaling to arbitrarily sized windows
  • Progressive scan video support
  • Area of interest transfers to system and onboard memory
  • 12-volt DC fused output for camera supply
  • General purpose I/O triggers
  • On-board microcontroller for robust timing and capture
  • Multiple board install support
  • Windows® 8, 7, Vista, and XP drivers
  • Free dPiction Capture Application
  • Optional SDK with sample applications
