Prior Nano positioning Piezo Z Stage

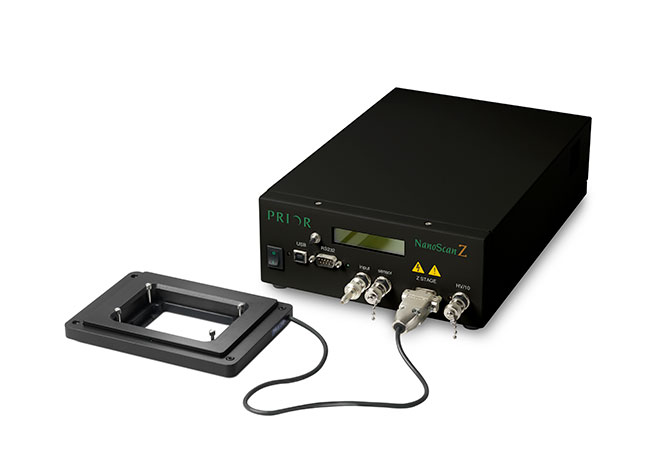

Prior Motorised NanoScan

Motorised NanoScan Z 100, 200 and 400

The NanoScan Z 100, 200 & 400 offers fast and extremely accurate control over the Z axis. Fully compatible with the ProScanTM H117 range of stages from Prior Scientific, the NanoScan Z series of focussing stages are ideally suited for DIC techniques, deconvolution, 3D reconstruction and confocal microscopy, particularly for applications involving live cells. Interchangeable sample holders increase the versatility of these stages. Incubators for both the NanoScan Z 100 & 200 and NanoScan Z 400 are available to allow high quality imaging of live cell cultures.

NanoScan Z 100 – 100µm of travel

NanoScan Z 200 – 200µm of travel

NanoScan Z 400 – 400µm of travel

Key features:

  • Compatible with ProScanTM III controllers and motorised stages
  • Interchangeable sample holders and inserts allow analysis of a wide range of samples
  • High Precision closed loop feedback
  • Driven by all software that supports objective collars
  • All size movements are complete in approximately 10 ms
  • LCD display clearly shows current position
  • RS232 and USB control
