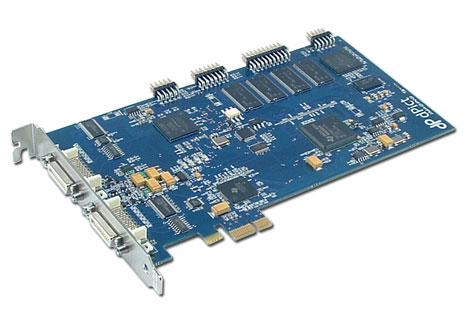

dPict Imaging Nexeon CL

dPict Imaging Nexeon CLNexeon CL is a low-cost, full-featured video frame grabber for digital camera solutions with the Camera Link standard. Nexeon supports the Base configuration of the Camera Link standard and works with all area and line scan Camera Link cameras up to 80 MHz. Nexeon CL comes equipped with an on-board DSP and plenty of memory for fast and reliable video data transfer to system or display memory.

Nexeon CL Features

  • PCI Express Format
  • Bus-mastering video acquisition
  • Supports Camera Link® standard at Base configuration
  • Supports area-scan or line-scan cameras
  • Simultaneous real-time transfer of video to system memory or display memory
  • TI DM642 Digital Media Processor
  • 64 MB SDRAM Frame Buffer
  • Acquisition rates up to 85 MHz
  • Supports 8/10/12/14/16/24 bit cameras
  • Supports Bayer Mode cameras
  • Video scaling to arbitrarily sized windows
  • Progressive scan video support
  • Auto camera acquisition for automatic camera configuration
  • Switchable PoCL compatible power outputs with SafePower
  • RS-232 serial input and output
  • General purpose I/O triggers
  • On-board microcontroller for robust timing and capture
  • Multiple board install support
  • Windows® 8, 7, Vista, and XP drivers
  • Free dPiction Capture Application
  • Optional SDK with sample applications
